BitLocker Recovery Key Rotation Requirements in Intune

BitLocker settings in Intune have gone through a transformation in recent years, with these encryption settings existing across multiple profile types, with different wording, settings, and options with Microsoft allow for configuration of BitLocker through three main policy types:

• Endpoint Security policies
• Endpoint Protection policies
• Settings Catalog policies

Despite all these policies being backed up by the BitLocker CSP, they all present their information in different ways.

This hasn’t made the translation of settings between policies particularly easy, especially if you’ve been keeping up with the Kardashians Joneses, and moving all your profiles to Settings Catalog backed policies like a good little Intune engineer.

1 Key Rotation Issues

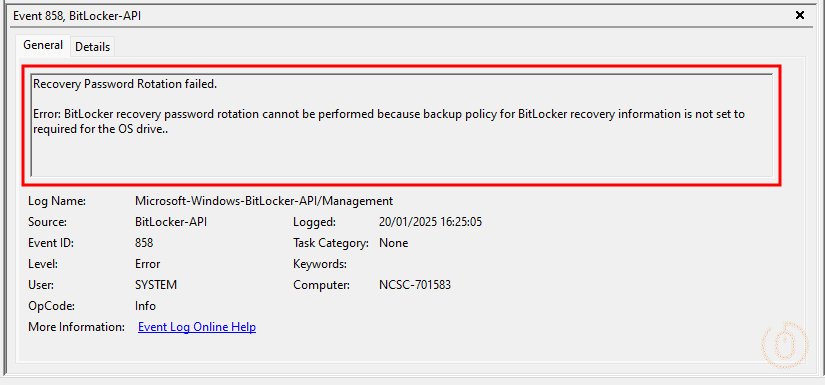

What do we actually need though to allow for successful BitLocker key rotation in each of these policy types, and what settings do we need to avoid Event ID 858 errors in the BitLocker-API event log like the below when attempting to rotate the key?

What is this “BitLocker recovery password rotation cannot be performed because backup policy for BitLocker recovery information is not set to required for the OS drive” error, and what do we need to fix it?

2 Key Rotation Settings

Let’s make sure that our BitLocker policies are configured to support the escrow (that’s a fancy word for, “keep hold of”) of the recovery key to Entra ID, as without this any rotation of the key is going to give us a headache.

We’ll assume that your policy in whatever flavour allows for silent enablement of BitLocker, as who can be bothered with secure devices additional pre-boot authentication 🙃?

What exactly do we need to enable key rotation?

Well it’s the following settings¹:

Assuming you’re not still stuck on old versions of Windows 10 😶, what do the other pre-requisites look like across the three policy types, allowing us to avoid recovery key rotation errors?

2.1 Endpoint Security Policy

Below are the Endpoint Security policy settings, and as I cba with hybrid joined devices any more are designed for Entra join only devices.

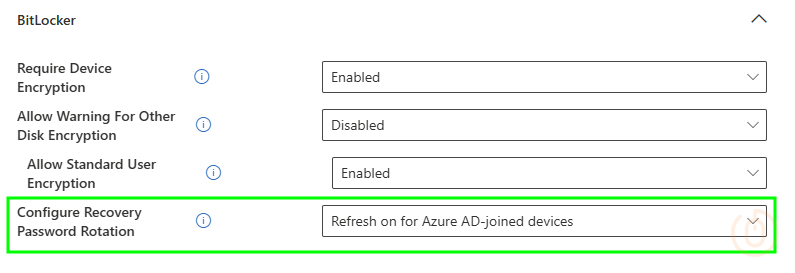

First off is the requirement for key rotation:

With the corresponding setting in Intune:

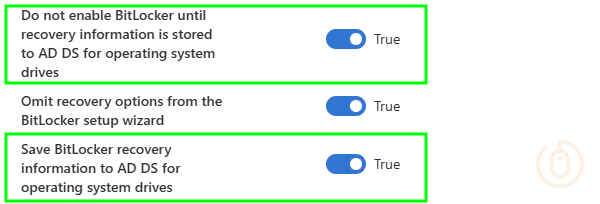

Moving to Operating System drive recovery options:

With Intune settings configured with the above values:

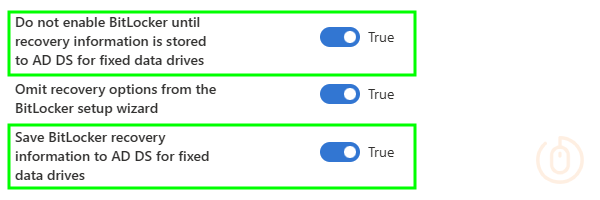

Lastly for Endpoint Security policies is the Fixed Data drive settings:

Configured in Intune:

2.2 Endpoint Protection Policy

Below are the Endpoint Protection policy settings, and if you need a refresh these are available in Configuration > Windows 10 and later > Templates > Endpoint protection.

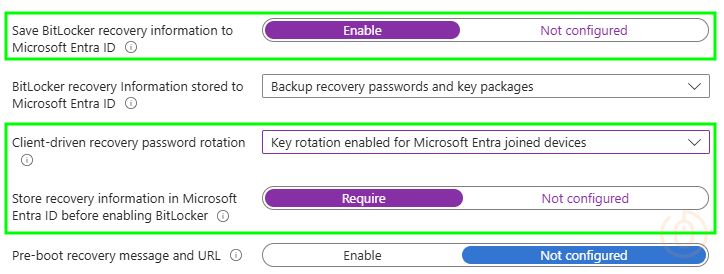

The Operating System Drive settings are configured with the below:

Looking like the below in Intune:

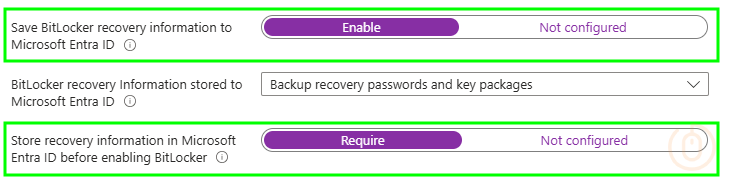

With the Fixed Data drive settings configured with the below values:

Intune looking sharp:

2.3 Settings Catalog Policy

If you’re like me and punting everything into these policies, this one is for you, and the settings themselves are the same as the Endpoint security policy (as this uses Settings catalog), they’re just presented differently, for some unknown reason.

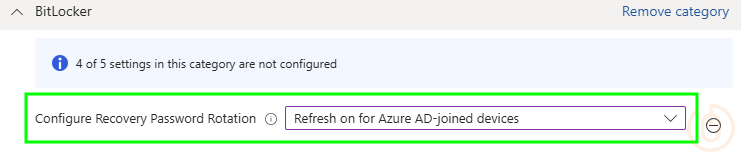

The required key rotation settings:

With the corresponding setting in Intune:

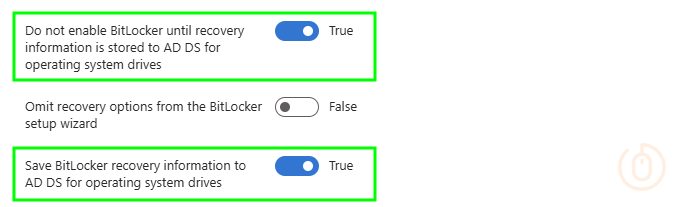

Operating System drive recovery options:

Intune settings configured with the above:

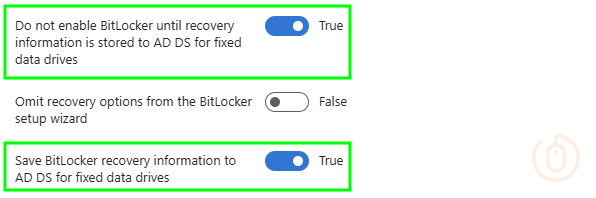

Finally is the Fixed Data drive settings:

Configured in Intune:

3 Key Rotation in Action

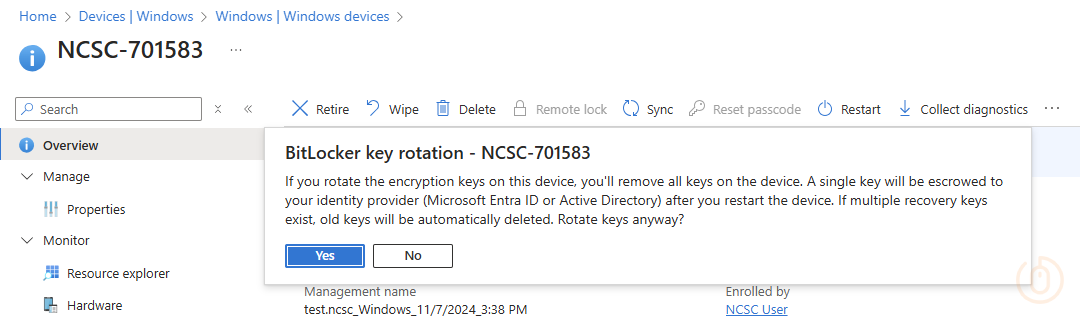

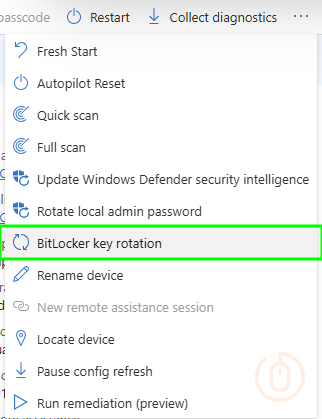

With one of the above policies applying to your devices, you can initiate a rotation of the BitLocker recovery key from Intune, go find a device, select the ellipsis (…) and select BitLocker key rotation:

Read the warning and obviously proceed, you wouldn’t be clicking this option unless you know what it does right? 😛

Once you’ve selected Yassss Yes, on the device in question, go check the event logs, located in:

Applications and Services Logs > Microsoft > Windows > BitLocker-API > Management

Intune will have hopefully asked the device nicely to rotate it’s keys, with the event log showing the following entries:

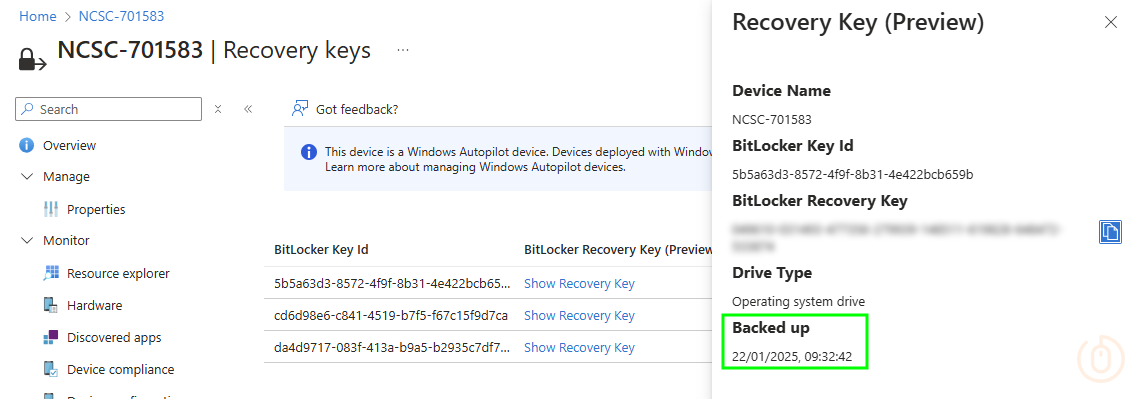

With a newly escrowed (there’s that new word we learned) into the Intune portal:

4 Summary

Luckily for us, Microsoft have made it easy to configure both BitLocker and the Key Rotation options in Intune, in whatever policy type you fancy, whether Endpoint Security, Endpoint Protection, or just a plain old Settings Catalog one.

What they should do, is unify the wording of these settings not just in the policies themselves, but with the tooltips, to allow for a solid understanding of what the setting is doing, and what it enables to happen with BitLocker keys, to save me writing posts about something that should just be easy to understand from the Intune portal 😅.
